EKAZA

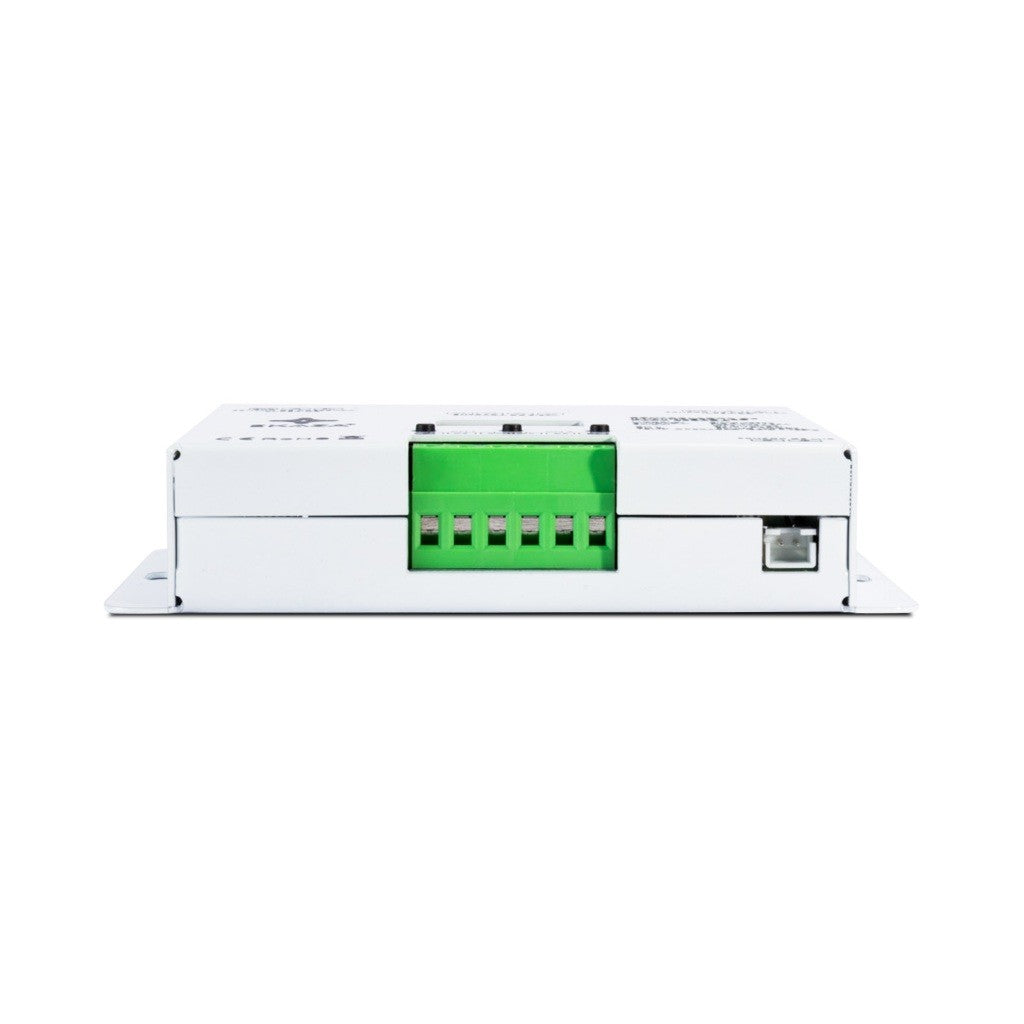

LED STAIRWAY LIGHTING CONTROLLER

EKAC-T3524

Sale priceR$ 549,99Regular price R$ 599,99
Connection
Connection: Com fio
Description

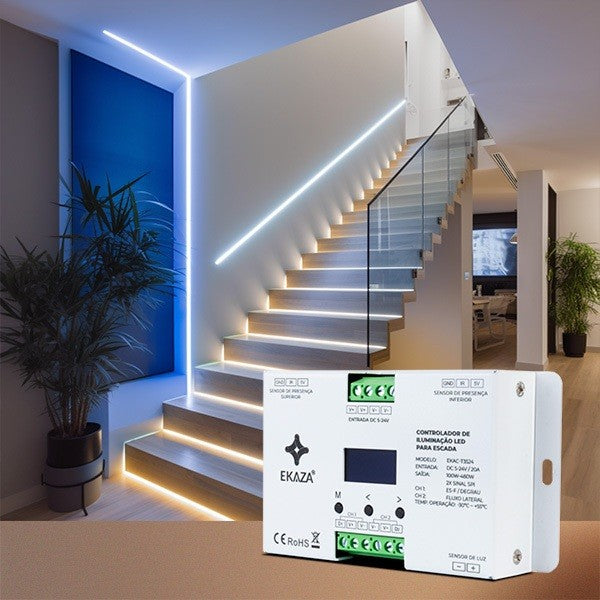

The EKAZA Stair Lighting Controller transforms your staircase into a focal point of your home decor, providing precise control and stunning lighting effects for every step. With simplified installation and smart sensors, this solution is perfect for those looking to combine functionality and sophistication.

SMART AND CUSTOMIZED LIGHTING
The device features sequential or direct lighting effects, allowing steps to be illuminated progressively or all at once. Additionally, the presence of PIR and ambient lighting sensors ensures that lighting is only activated when needed, saving energy and extending the system's lifespan.

SECURITY AND CERTIFICATIONS
The EKAZA Controller is certified by safety and EMC standards such as CE and LVD, ensuring the device's quality and safety in any environment. Its robust construction and high-quality materials ensure durability and consistent performance even in harsh conditions.

Fast and Free Shipping over R$ 150.00

30-day money-back guarantee

Hassle-Free Guarantee

Lifetime Customer Support

Unboxing & Reviews

Specifications

Technical Sheet

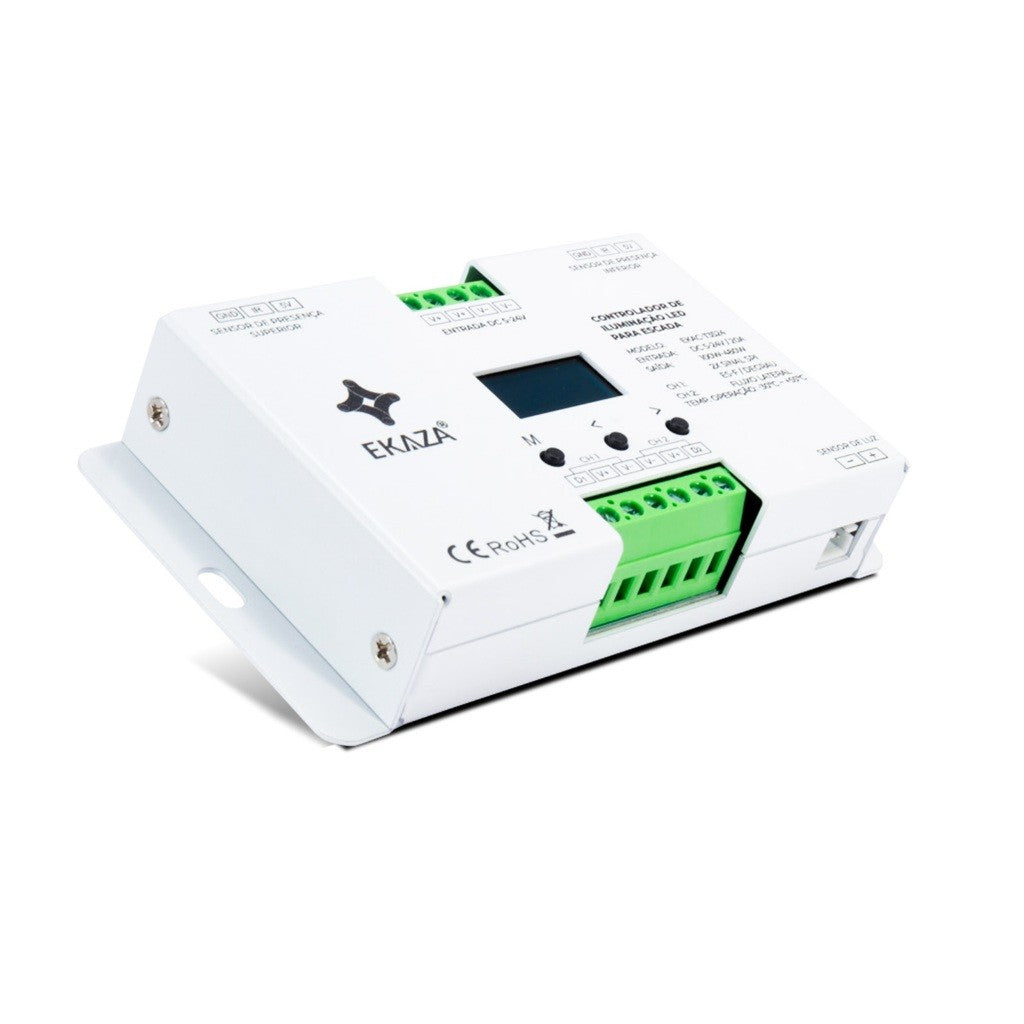

  • Model: EKAC-T3524
  • Mark: EKAZA

Controller Parameters:

  • Input voltage: DC 5-24V
  • Input current: 20A
  • Output power: 100-480W

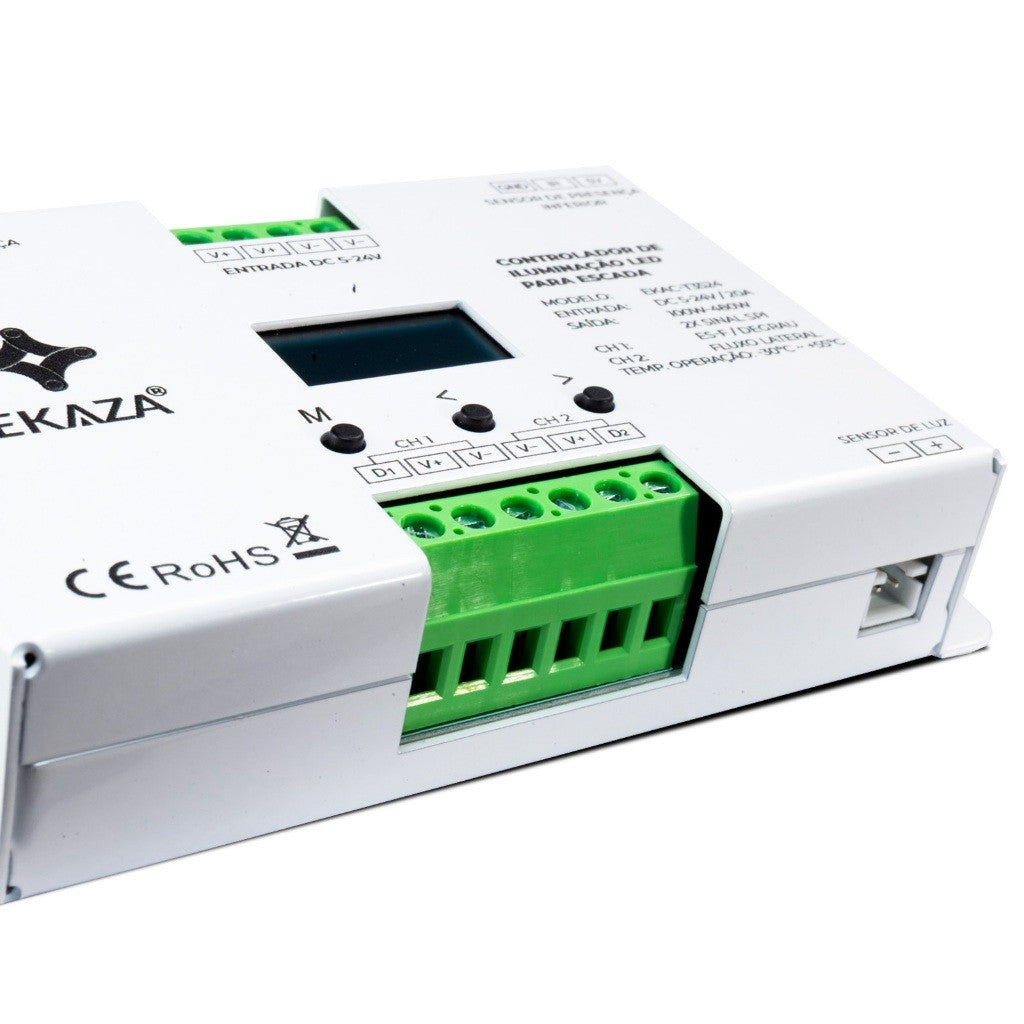

  • Output type: 2x SPI(TTL)
  • Number of Steps: Default 24, Max 72
  • Number of pixels supported: Max. 720

PIR presence sensor data:

  • Detection range: <3m
  • Sensitivity angle: 30°(±10°)

ES-F Stepper Subcontroller Parameters:

  • Input voltage: DC 5-24V
  • Output voltage: DC 5-24V
  • Output current: 1A Max.
  • Input Signal: SPI(TTL)

Safety and EMC:

  • EMC standard (EMC): ETSI EN 301 489-1 V2.2.3 / ETSI EN 301 489-17 V3.2.4
  • Safety Standard (LVD): EN 62368-1:2020+A11:2020
  • Certification: CE, EMC, LVD

General parameters:•

  • Operating temperature: Ta -30ºC ~ +55ºC
  • IP: IP20
  • Dimensions: 123x68x26.5mm
  • Weight: 1.52K
  • Contains: 1 Unit
  • Validity: Undetermined


    ADVANCED FEATURES    :

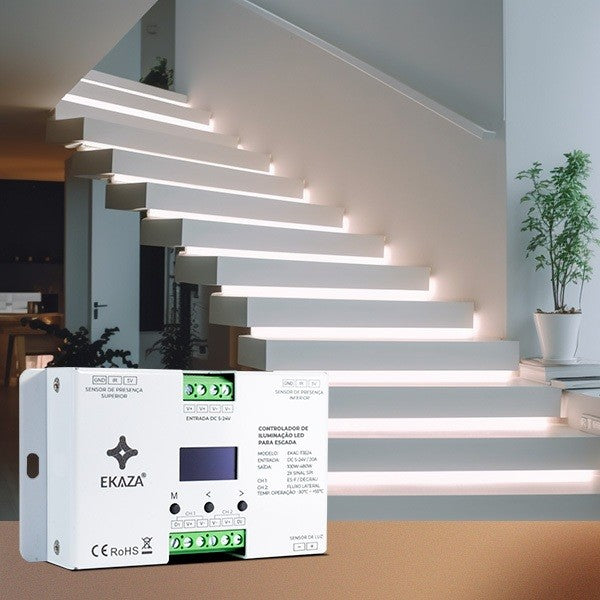

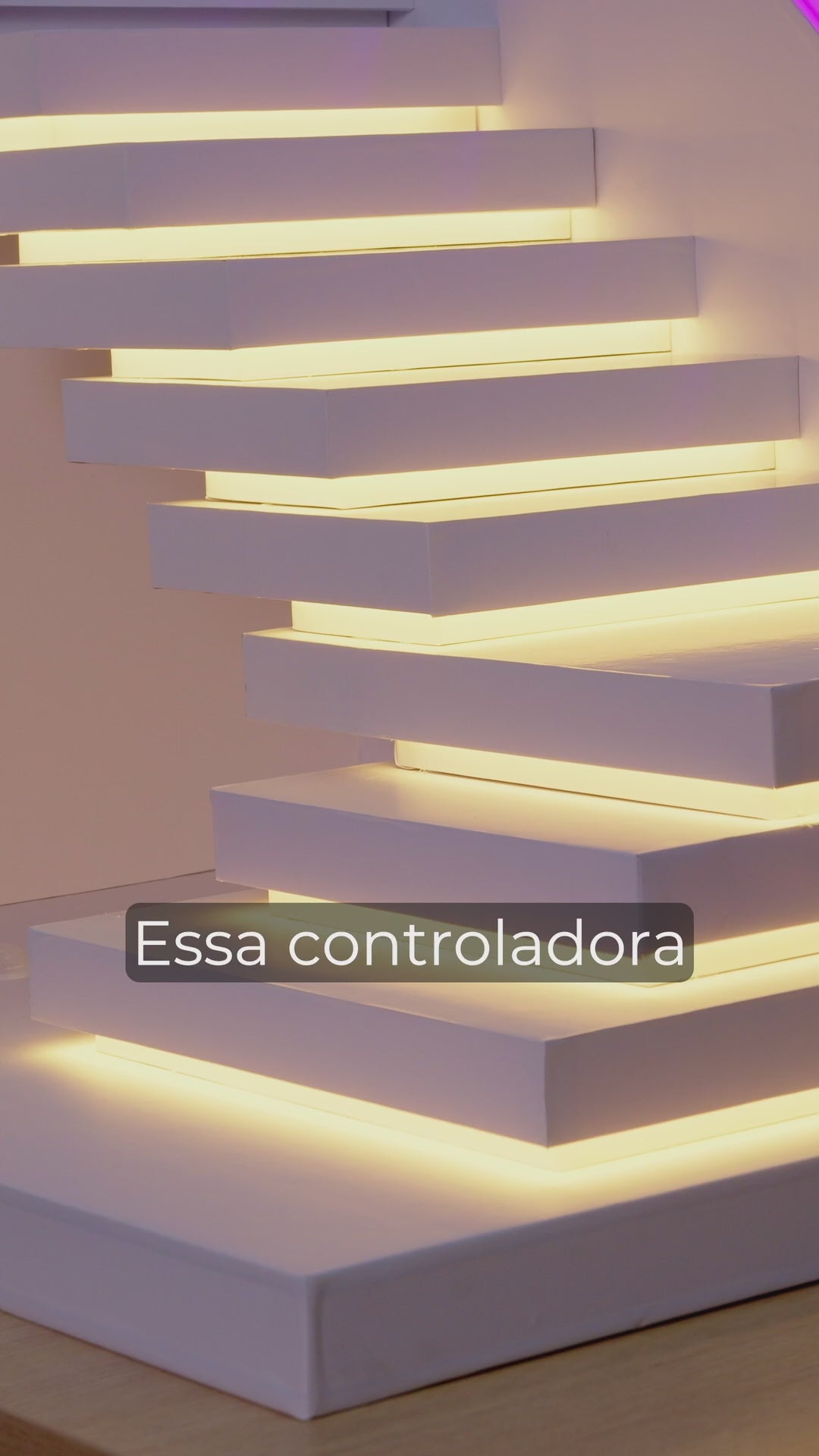

•Sequential or Direct Effect: Choose between lighting the steps sequentially or all at the same time, depending on your preference.

  • Easy Installation: With easy installation harness, the assembly process is quick and hassle-free.
  • PIR Presence Sensor: Activates lighting when movement is detected, offering comfort and safety when using the stairs.
  • Ambient Lighting Sensor: Detects ambient brightness to activate lighting only in low light situations.
  • Secondary LED Channel: Add RGB IC LED strips for decorative effects on handrails or walls, elevating the style of your staircase.

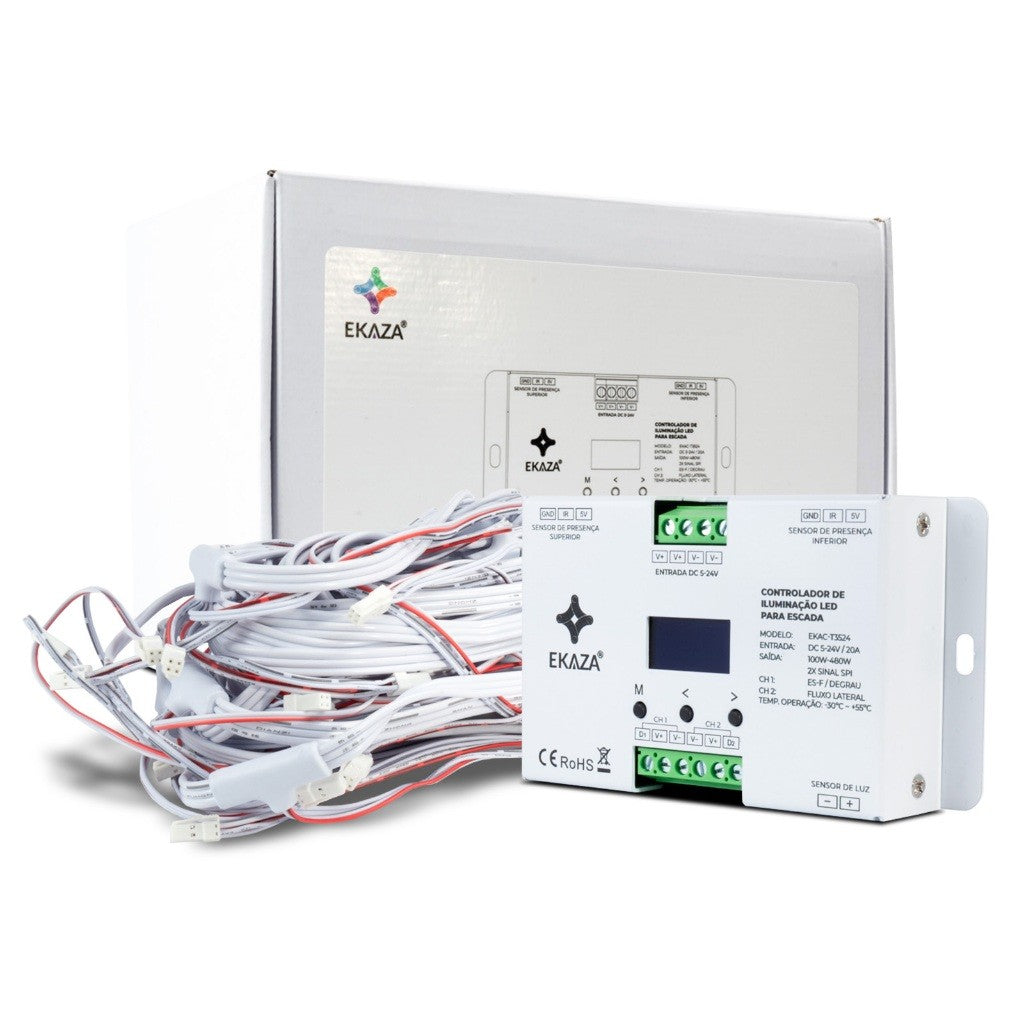

Content
  • 1 x LED Lighting Controller
  • 1 x Manual
  • 1 x Light sensor (30 cm)
  • 24 x ES-F Step Subcontroller

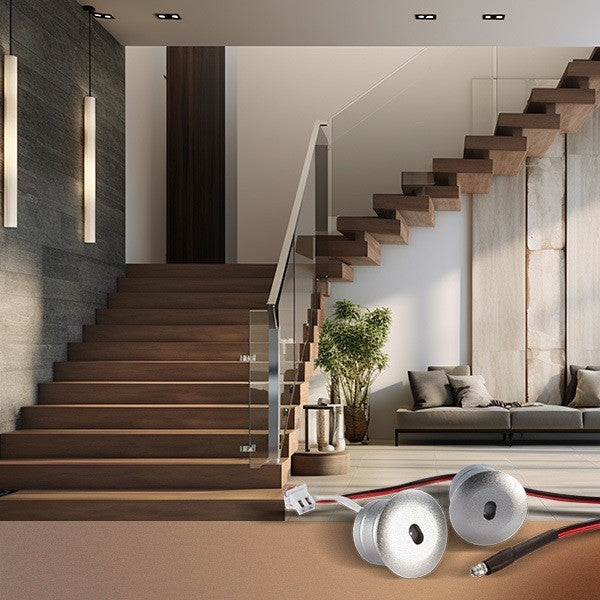

  • 2 x PIR Presence Sensor (1.2m)
  • 2 x PIR Presence Sensor Extender (5m)

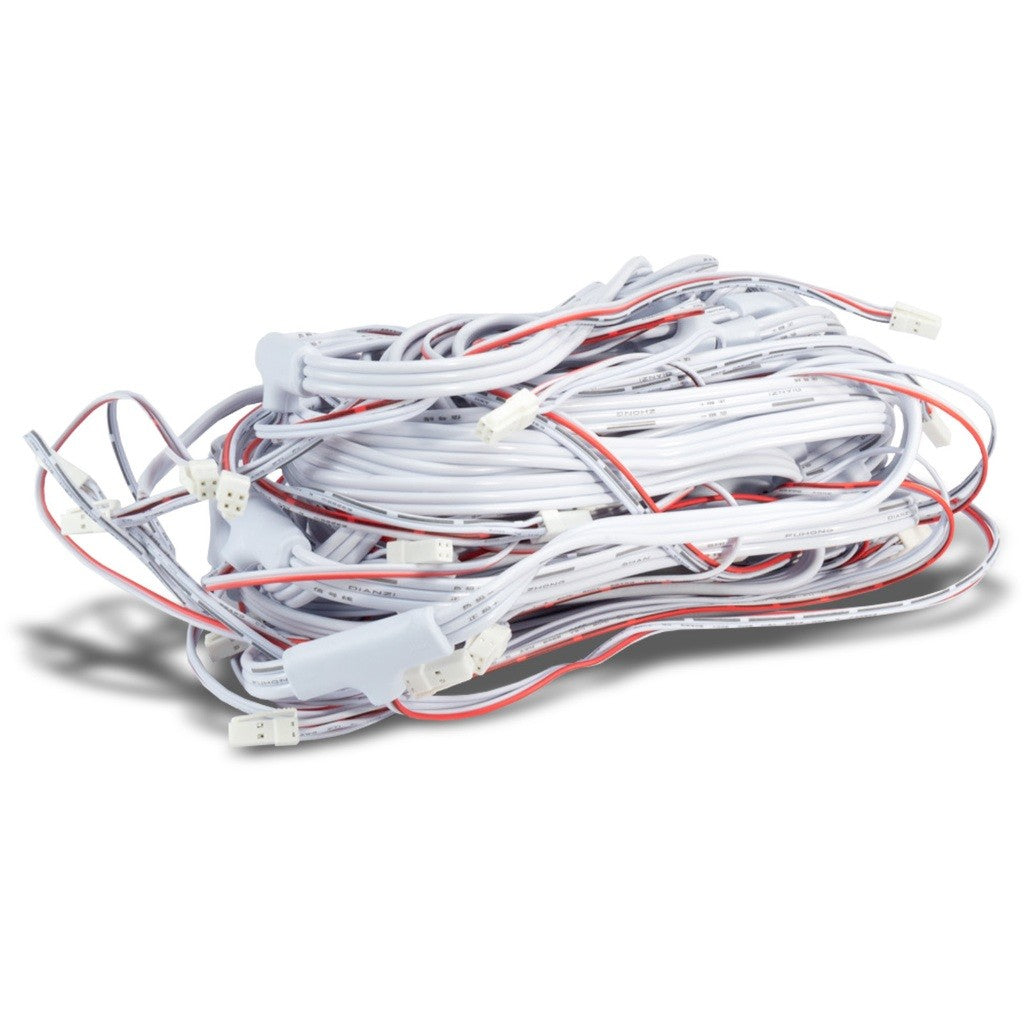

  • 1 x Harness for ES-F (11m-24 Interfaces)








Dimensions

Dimensions: 123x68x26.5mm

Download User Guide
Baixar Manual pdf - LED STAIRWAY LIGHTING CONTROLLER
